Volume X Number 2, December 2004

Using Extended And Enhanced Usability (EEU) To Provide Access To Mainstream Electronic Voting Machines

Gregg C. Vanderheiden (gv@trace.wisc.edu)
Director, Trace Research & Development Center
Professor, Industrial Engineering and Biomedical Engineering Departments
University of Wisconsin-Madison

ABSTRACT

In addressing the voting rights of people with disabilities the approach to date has often been to provide at least one accessible machine per voting place or district. However, work with elderly individuals who need to have accommodations to allow them to vote confidently and accurately, suggests that this might not be an effective approach. First, these individuals may not recognize that they have a problem that needs addressing. They may feel they don't see quite as well - but they may have gradually lost vision and not realize the extent. If they do recognize that they have a problem they often do not wish to use voting booths that are for 'disabled people' in front of their friends (who are often among the poll workers). To address this problem, a series of prototypes and usability studies were used to explore methods of creating electronic voting machines that would work well for all voters. By extending and enhancing the usability of mainstream voting machines it may be possible to address the needs of as much as 99% of voters. The one percent of individuals with severe disabilities can then use a single accessory that can allow them to vote independently.


INTRODUCTION

The 2000 election in the United States brought to light a number of problems and issues regarding our current voting system and technologies. Among them was widespread discarding of ballots from each election because of problems that people had in filling them out. (Alvarez, Ansolabehere, Antonsson and Bruck, 2001) In addition, modifications that were made in order to make some ballots readable and usable by older people appear to have caused the ballots to be confusing (Quesenbery 2001) and created a widespread belief that ballots differed from the voter's intention. These problems also resulted in renewed focus on the barriers that individuals with disabilities face in participating in the mainstream voting process. The passage of the "Help America Vote" Act (HAVA) and the ensuing standards for accessibility made accessibility issues prominent in the voting process for the first time. However a common approach to addressing it was to place a single accessible machine in each voting precinct. (US Dept of Justice, 2004). This approach has several problems:

  1. First, if anything goes wrong with the single accessible voting machine, there is no opportunity for individuals who needed the special assistance to use any of the other machines in the location.
  2. The voting technique for those with disabilities is often different enough from the voting technique used by everyone else that poll workers are likely to be ill prepared and often unable to correctly explain the proper method for using these special voting systems or modes.
  3. Many individuals who require special accommodation, especially those who are older or who have hidden disabilities (e.g., learning disabilities), are unwilling to use the "disability machines," especially in front of their neighbors and friends who are among the poll workers.
  4. Finally, care has to be taken to ensure that enough non-disabled voters in other categories use the accessible voting machine to ensure that the voting pattern of disabled voters is not obvious and separable from the voting process overall.

The magnitude of the problem with regard to elder voters and disability can be seen from Figures 1 and 2. Figure 1 shows disability as a function of age. As people age, the percentage of the population that experiences disabilities rises sharply. In fact, all voters will acquire disabilities if they live long enough. Figure 2 shows common types of disabilities by age group, and reflects a sharp increase in physical, visual, and hearing disabilities with age. Not reflected in these data is the effect of aging on cognition.

Functional limitations as a function of age
Figure 1
Caption: Functional limitations as a function of age. (Based on data from Kraus and Stoddard, 1989. Source: Bureau of Census, Series P-70. # 8. Survey: SIPP, 1984.)

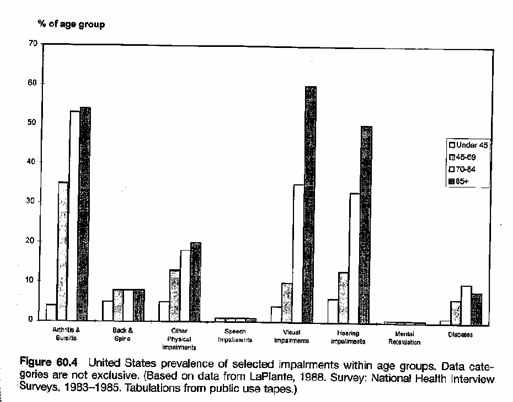

Prevalence of selected impairments within age groups
Figure 2
Caption: United States prevalence of selected impairments within age groups. Data categories are not exclusive. (Based on data from LaPlante, 1988. Survey: National Health Interview Surveys, 1983-1985. Tabulations from public use tapes.)


INITIAL OBJECTIVES AND PROTOTYPE

The initial objective of our work was to create a single electronic voting machine interface that would accommodate all voters. Our early prototypes provided a touch screen interface with a very simple ballot layout, resembling paper ballots that voters may have been familiar with. This interface provided enhanced readability and the ability to correct. It also provided protection against overvoting and warnings for undervotes. For individuals who could not use the touch screen because of reach or because they could not see, tactile Braille marked buttons were available below the screen, allowing the voter to move through the races, as well as separate buttons to move up and down the choices in any race, to cast or cancel a vote, and to jump to the end to check a summary of their votes. Vanderheien, G.C. (2002).

In using the early prototypes with older voters, it was interesting to note that many would use the arrow keys rather than the touch screen to navigate and vote, or mixed the two methods. However, one of the primary findings was that the addition of the extra buttons to the interface increased the overall visual complexity to the degree that older voters found the machine intimidating. Even individuals who were able to discover and use the voting the system successfully commented on the fact that it looked complicated.

CURRENT PROTOTYPE

Different strategies were explored to address the problem of visual complexity and cognitive load. First, any unnecessary labeling was removed. Secondly, an icon showing how the card should be inserted in the side (to initiate voting) was removed and instead put into an illustration on the screen. In this fashion the card image would be present when it was necessary to insert the card, but was otherwise not visible. The greatest reduction in complexity, however, was achieved by removing the tactile button set that allowed non-visual voting from the bottom edge of the display. The result, shown in Figure 3, was a voting tablet with an interface that was visually much simpler. Only the buttons for turning the pages, the zoom and help buttons, and the button to skip to the end remain. The tactile page turning buttons were retained because of their easy reach, the fact that they were much more salient and obvious than the onscreen buttons, and because some older voters were not used to the idea of on-screen buttons.

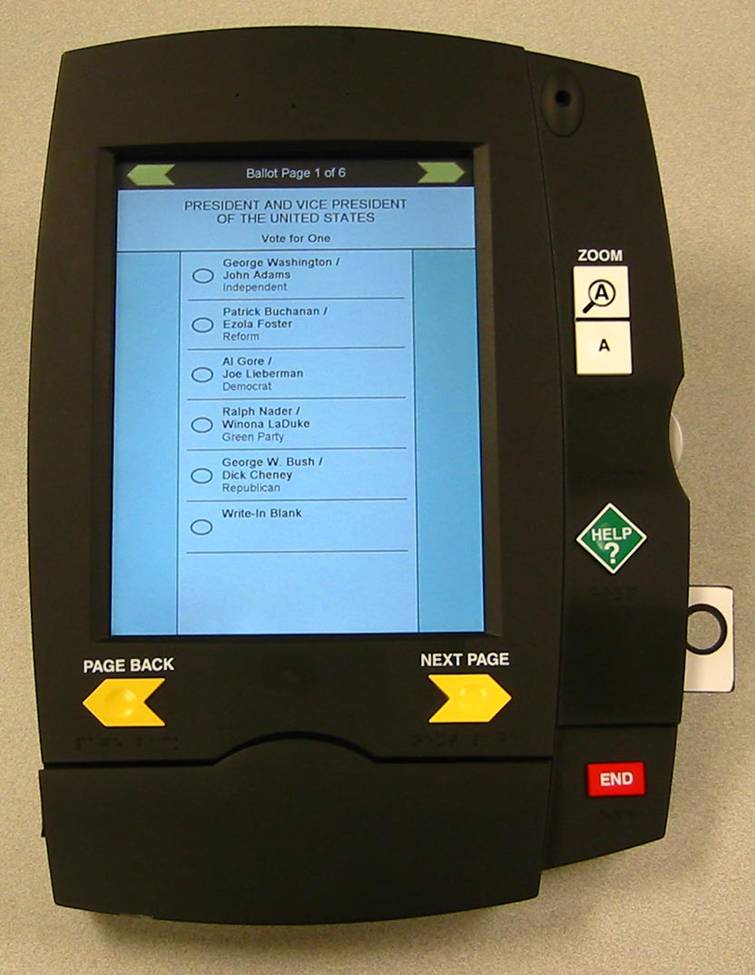

Current Design of Tablet Voting Machine
Figure 3
Caption: Current Design of Tablet Voting Machine that allows use by mainstream voters and most people with disabilities.


A separate button pad (Figure 4) was designed that would work as an accessory to the voting tablet for individuals who were unable to use the touch screen for voting. This button pad allowed individuals to be able to turn through the various pages, move up and down through the choices, vote, and jump to the end in the same manner as the main set of controls. Even the help button was replicated so that the entire voting process could take place using the button pad. This pad could be held in the hand, placed on the table or placed in the lap.

Keypad that attaches to Electronic Mainstream Vote Machines
Figure 4
Caption: Keypad that attaches to Electronic Mainstream Vote Machines to allow voting by those who cannot use the primary means.


Use of the separate button pad provided two benefits. First, it allowed the main unit to remain visually and operationally simple. Removing the extra buttons from the standard unit also reduced questions from voters who were not sure what the difference was between voting by touching the screen and voting using the buttons. Second, it allowed individuals who are blind to be able to explore the buttons and use them confidently without accidentally touching a nearby touch screen and causing some inadvertent action (a problem we encountered with the original all-in-one design). Finally, it avoided the need for any modal operation (such as turning off the touch screen when the buttons began to be used), which might cause confusion for those who used a button and then tried to use the touch screen, only to find that the screen no longer worked.

AUDIO ENHANCEMENTS

A key breakthrough in the research occurred when we thought to add audio enhancements to the mainstream voting experience. Initially, when we moved the buttons to a separate pad, we ended up moving a significant portion of the voters off of the standard touch screen voting approach and onto the button pad. This included voters who are blind, voters who had low vision (and needed to have the names read to them), voters who had any type of reading problem, voters who could not recognize an ethnic name by its spelling and needed to have it pronounced, as well as voters who needed to use the buttons because of physical inability to reach or accurately touch the screen targets.

However, by changing the operation of the touch screen to add "voice confirm" and "touch to hear" features, most of these individuals could move back to voting using the main voting tablet.

The "voice confirm" feature allows individuals to vote normally, but get voice confirmation. This eliminates any doubts about the accuracy of their vote. After putting on a pair of headphones, they vote in the normal, visual touch screen fashion. However, each time they mark a selection, they hear the name of the candidate they marked announced in the headphones. This feature allows individuals who think they are having no problem to easily detect any incorrect votes. If a "voice confirm" feature had been available on the infamous "butterfly ballot," for example, it is unlikely that people would have made the mistakes that were apparently made without having discovered the mistake and being given a chance to correct it.

The "touch to hear" feature was created by separating each candidate area into two regions. One region is a large area surrounding the actual oval in which the vote mark or check mark appears. The candidate name then becomes a "touch to hear" area. With the "touch to hear" feature, the voter can touch any of the text anywhere on the screen and it will be read to them. They can touch the instructions on the top when they begin or at any time during the vote if they are not sure which race they are in or how many people they are allowed to vote for. They can then move down the ballot, touching each of the names and having them read. A human (rather than synthetic) voice is used so that names are pronounced properly. When the voter finds the name they desire, they simply touch the checkbox next to the name. When they touch the checkbox, a mark appears at the same time the "voice confirm" confirms the name and the fact that they have marked or unmarked that candidate. Similarly, on a ballot referendum, they can read through the ballot and go back and have sections reread to them as they desire.

IMPLICATION FOR OLDER VOTERS

The combination of these auditory, visual, and cognitive features as part of the standard voting system allows individuals who are older to be able to use the main touch screen voting system. By putting on the headphones, they can receive confirmation that they are, in fact, voting accurately. If they have difficulty, they can easily and naturally use the "touch to hear" feature to look for and find the candidates they want to choose. The voter retains their independence and avoids the embarrassment and loss of privacy with regard to their abilities.

SUMMARY OF ENHANCED AND EXTENDED USABILITY (EEU) MACHINE

Our current best design has the following characteristics:

Applicability of These Techniques

The use of these types of enhancements is not restricted to this particular prototype. The "voice confirm" and the "touch to hear" functionality, as well as the keypad module, could be implemented on other electronic voting technologies, such as touch screens, other screen based techniques, and even full faced ballot voting machines.

Coverage of the EEU Voting Machines

With the described enhancements on the main voting unit, we estimate that 99% of voters would be able to use the main touch screen unit. The remaining 1 % could use the units via the optional keypad. Keypad users would include individuals whose vision is not sufficient to allow them to see the position of text blocks on screen, who do not have sufficient reach or strength to be able to use the touch screen, and those who would use special personal switches plugged into the keypad. Importantly, EEU voting machines would allow all those whose abilities are fading with age to be able to gracefully move from voting with good vision and motor skills to voting with impaired visual, motor, hearing, and cognition in a gradual, graceful and natural way that preserves their independence and dignity. It also allows a large number of individuals with "invisible" disabilities to be able to vote without having to identify themselves or risking an inaccurate vote because they wish to remain anonymous.

VOTER VERIFICATION

Although not the primary topic of this paper, it should be noted that the need for voter verification or even a voter verified paper ballot trail does not in any way preclude the ability to use electronic voting systems and EEU voting systems such as that described. For example, systems such as the one described could be used to print out a card which summarized all of the candidates chosen by the individual. This card could then be taken to an independent reader station, where it is optically scanned and counted. If the individual is not able to read the card themselves, they can feed the card into the reader and the candidates can be confirmed in large print and/or read to the individual. This can be done on the main counting unit or a separate unit.

CONCLUSION

Electronic voting systems have opened up the opportunity to not only reduce the number of errors and rejected ballots (due to voter error), but they also have the potential to greatly increase the number of individuals who are able to accurately and competently vote in privacy. The work described here shows that it is possible to create mainstream voting systems which have their usability enhanced and extended such that they cover almost everyone, thus preventing individuals who may not know they have disabilities (or may not want to expose the fact that they have disabilities) from casting ballots with errors. Finally, it demonstrates the ability to use a simple keypad module to provide access to individuals who otherwise wouldn't be able to use even the enhanced mainstream voting technique.

REFERENCES

Alvarez, R. M., Ansolabehere, S., Antonsson, E., Bruck, J., (2001) Voting - What Is, What Could Be
From http://www.vote.caltech.edu/Reports/july01/July01_VTP_%20Voting_Report_Entire.pdf [Oct 17, 2004]

Kraus, L., and Stoddard, S., 1989. Chartbook on disability in the United States. Prepared for US Department of Education, National Institute on Disability and Rehabilitation Research. Washington, DC: The Institute.

LaPlante, Mitchell P.1989 , Data on Disability from the National Health Interview Survey, 1983-85. Washington, D.C.: National Institute on Disability and Rehabilitation Research, 1988.

National Center for Health Statistics (1994), Data from the National Health Interview Survey, Series 10, Number 188, Table 1, 1994.

Quesenbery W., (2001) Voting and Usability: Lessons from the 2000 Presidential Election
STC-PMC, November from http://www.wqusability.com/articles/voting-nv.html [Oct 17, 2004]

US Dept of Justice (2004) U.S. Department of Justice, Civil Rights Division, Voting Section, Frequently Asked Questions from http://www.usdoj.gov/crt/voting/misc/faq.htm [revised Oct 7, 2004]

Vanderheien, G.C. (2002). Building Natural Cross-Disability Access into Voting Systems. Proceedings of RESNA 2002 Annual Conference.

Vanderheiden, G. C. (2004). Using Extended and Enhanced Usability (EEU) to provide access to mainstream electronic voting machines. Information Technology and Disabilities E-Journal, 10(2).
